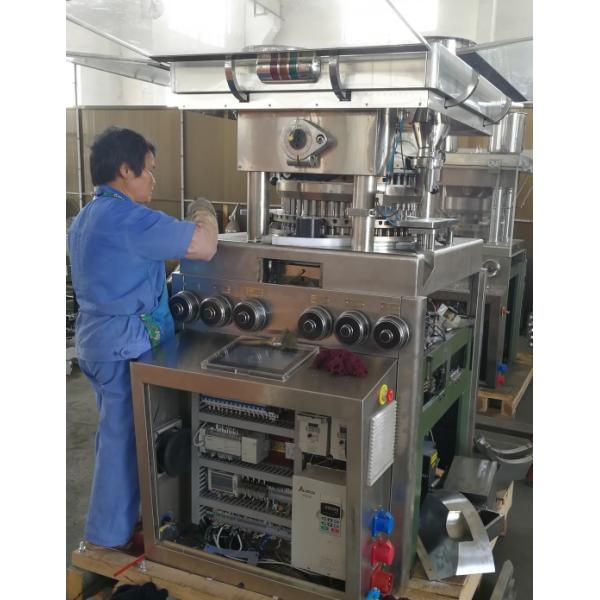

Double Side Rotary High Speed Tablet Press 100KN For Pharmaceuticals

Name: Double Side Rotary High Speed Tablet Press 100KN For Pharmaceuticals
Brand: TIAN HE
Price: 1 USD

Wholesale Double Side Rotary High Speed Tablet Press 100KN For Pharmaceuticals from china suppliers

Product Name : GZP(K) Series High Speed Rotary Tablet Press

Brand Name : TIAN HE

Type : High Speed Rotary Tablet Press

Material : Stainless Steel

Condition : New

Certification : CE GMP ISO

Model : GZP(K)-37 GZP(K)-45 GZP(K)-55 GZP(K)-59

Usage : Tablet Making In Pharmaceutical, Chemistry, Foodstuff, Electronic Industries

Max Main Pressure(KN) : 100

Max Pre-pressure(KN) : 20

Max Filling Depth(mm) : 20

Max Tablet Thickness(mm) : 8

Max Turret Speed(r/min) : 80

Max Production Capacity(pcs/h) : 566400

Motor Power(kw) : 11

Overall Size(mm) : 1420 x1200 x1850

Machine Weight(kg) : 3500

Place of origin : Shanghai, China

Warranty : 1 Year

After-sales Service : Video Technical Support, Online Support

Key Selling Point : High Speed ,Automatic, Mass Production

High Light : High Speed Rotary Tablet Press Double side Rotary Tablet Press High Performance Rotary Tablet Press

Model Number : GZP(K)520

Place of Origin : Shanghai, China

MOQ : 1 Set

Supply Ability : 50 Set /Sets Per Year

Delivery Time : About 25 working days after payment

Packaging Details : Normal export wooden case

Contact Now

High Speed Tablet Press High Speed Rotary Tablet Press GZP(K)520 Automatic Rotary Tablet Press Double side High Speed Rotary Tablet Press

Application:

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.

Feature:

High speed with large quantity punches, double press rollers, suitable for mass production.
Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
High performance electrical control system, ensure each program processing precisely.
Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
Special oil proof, dust proof and noise proof design.

Main Technical Specifications:

Model		GZPK-37	GZPK-45	GZPK-55	GZPK-59
Number of Stations		37	45	55	59
Tooling Standard		D	B	BB	BBS
Max Main Pressure (KN)		100
Max Pre-pressure (KN)		20
	round tablet	25	18	13	11
Max Tablet Diameter (mm)	irregular tablet	25	19	16	13
Max Filling Depth (mm)		20	18	15	15
Max Tablet Thickness (mm)		8	7	6	6
Max Turret Speed (r/min)		60
Max Production Capacity (pcs/h)		266400	324000	396000	424800
Motor Power (kw)		11
Overall Size (mm)		1420×1200×1850
Machine Weight (kg)		3500
